| 원래 장소: | 광동, 중국 |
|---|---|
| 인증: | ROHS |
| 모델 번호: | M-TN300 |
| 최소 주문 수량: | 교섭 |
| 가격: | negotiable |
| 포장 세부 사항: | 판지에서 포장하는 |
| 배달 시간: | 5~8 일 |
| 지불 조건: | 전신환 |
| 공급 능력: | 100000PCS |
| 모델 번호: | M-TN200 | 비중: | 2.80±0.28 Ｇ / 센티미터 3 |
|---|---|---|---|
| 절연성 힘: | ≥10.0 킬로볼트 / 밀리미터 | 전도성 있는 열식: | 2.0W/m·K |
| 색: | 회색 백색 | 크기 (Ωocm): | 1.0×10^14 |
| 재료: | 실리콘 | 화염 등급: | 94 V-0 |
| 강조하다: | 2.0W/m·K 열기 전도성 있는 putty,10.0kv/mm 방열 putty,2.0W/m·K 방열 퍼티 |
||
Dielectric Strength ≥10.0 kv/mm White Thermal Conductive Putty For Tablet Computer
|
Product Name
|
Thermal Conductivity Silicone Putty
|
|
Material
|
Silicone
|
|
Function
|
Heat dissipation
|
|
Package
|
According to customer requirements
|
Features and Benefits
Thermal Conductivity 2.0 W/m·k
Good plasticity and can take place of silicone grease
Very good wettability which reducing the thermal resistance
Flame Retardant Grade: V-0
M-TN200 thermal putty is a kind of thermal interface materials which has a very low force deformation. It has a good plasticity as plasticine. It is suitable for the thermal modules or components which with a big change of thickness. It has inherent adhesion features, dispense with adhesion layer, meanwhile keep wettability and cover the tiny uneven surface so that make the mating parts fully contacted, thus improve the of efficiency of heat conduction.
Different from the thermal silicone grease, there is no sedimentation phenomenon for M-TN200 thermal putty . It is suitable for screen printing or coating. The thickness can be specially customized.
|
Property |
Unit |
M-TN200 |
Test Method |
|
Hardness |
Shore C |
30-60 |
- |
|
Thermal conductive |
W/m·K |
2.0 |
ASTM D5470 |
|
Thermal resistance
|
@ 20 psi |
0.10°C·in2/W 0.65°C·cm2/W |
ASTM D5470 |
|
Flame Rating |
- |
94 V-0 |
U.L. |
|
Breakdown Voltage |
kV(@1mm) |
＞10.0 |
ASTM D149 |
|
Dielectric Constant |
@1 MHz |
6.3 |
ASTM D150 |
|
Permeability TML (CVCM) |
% |
≤0.15 (0.05) |
ASTM E595 |
|
RoHS Compliant |
- |
Yes |
*** |

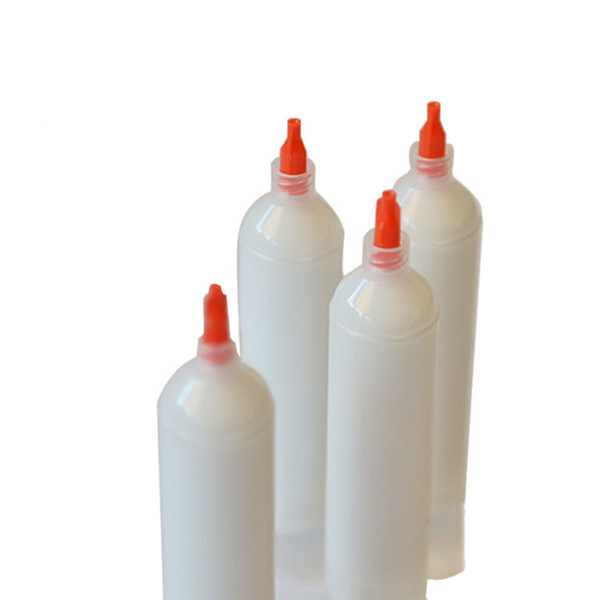

Product Details
one-component: 30ML 300ML 5KG 10KG
Shipping
FAQ
1. What are your main products?
We supply thermally conductive pad, graphene Material, thermal adhesive tape, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
