| 원래 장소: | 광동, 중국 |
|---|---|
| 인증: | ROHS,SGS |
| 모델 번호: | MG-GT |
| 최소 주문 수량: | 교섭 |
| 가격: | negotiable |
| 포장 세부 사항: | 판지에서 포장하는 |
| 배달 시간: | 3~8 일 |
| 지불 조건: | 전신환 |
| 공급 능력: | 100000pcs/day |
| 등급: | 산업 급료 | 타입: | 복합 시트 |
|---|---|---|---|
| 샘플: | 제공되는 샘플 | 형태: | 주문을 받아서 만들어지는 모양 |
| 견고성: | 80 해안 A | 사이즈: | 맞춤화될 수 있습니다 |
| C 내용 (%): | 99 % | 용법: | LED 조명 / 방열판 / LCD-TV / DVD / PC / 모바일 |
| 강조하다: | 0.1 밀리미터 두께 연 그라파이트 film,13 W/m·K 열 전도성 있는 pad,0.1mm 두께는 흑연 시트를 보강했습니다 |
||
Thickness 0.1mm Natural Graphite Sheet Use In IC CPU MOS LED Thermal Pad Graphene
Features & Benefits
l Ultra-high thermal conductivity, easy to operate;
l Low thermal resistance
l Light weight
Typical Applications:
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?
Physical Properties
| Test Item | Unit |
MG-GT300 Test Value |
MG-GT300B Test Value |
MG-GT300B01P Test Value |
| Color | - | Black | Black | Black |
| Material | - | Natural graphite |
Graphite sheet + Adhesive |
Adhesive + graphite sheet + PET film |
| Thickness | mm | 0.13/0.25/0.5 | 0.16/0.28/0.53 | 0.19/0.31/0.56 |
| Continuous use Temp | ℃ | -40~+400 | -40~+400 | -40~+400 |
| Tensile Strength | 4900kpa | 715PS | 715PS | 715PS |
| Hardness | Shore A | 80 | 80 | 80 |
| Flame Rating | - | V-0 | V-0 | V-0 |
|
Thermal Conductivity (vertical direction) |
W/m·K | 20 | 15 | 13 |
|
Thermal Conductivity (horizontal direction) |
W/m·K | 300 | 300 | 300 |
| Standard size: roll size :1000mm*100M, Customized sheet, die-cut form available | ||||

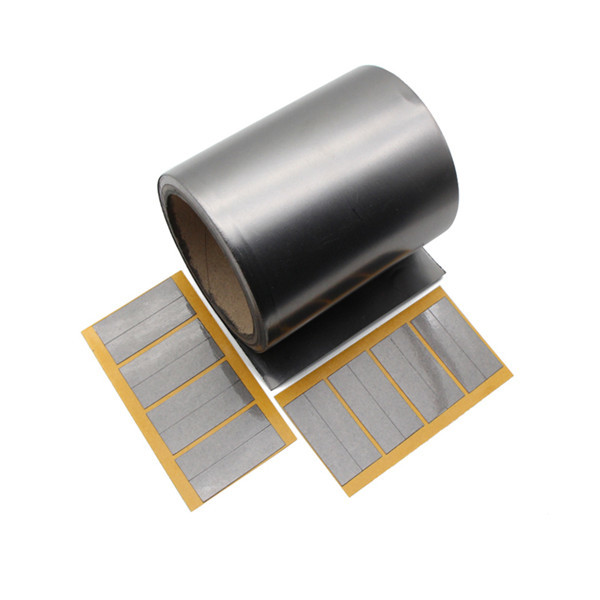

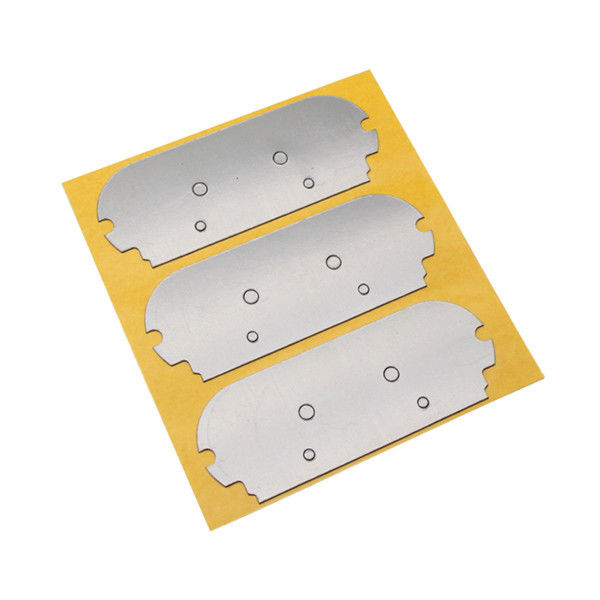

Product Pictures
| Our services |
| 1. 8 years TIMs experiences |
| 2. Professional R&D team |
| 3. One-stop service for thermal conductive material |
| 4. Support customized orders,including size,shape,color, and thermal conductivity or can be coated one side or two sides adhesive or fiberglass according to your demands |
| 5. Free sample provided |
| 6. Manufacturer offers best price |
| 7. Good quality and fast delivery |
| 8. Professional after-sale service |
| 9. Quality system to obtain ISO9001 certification,products meet ROHS,REACH and UL safety standard certification standards |
| 10. Prompt response within 24 hours |
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
